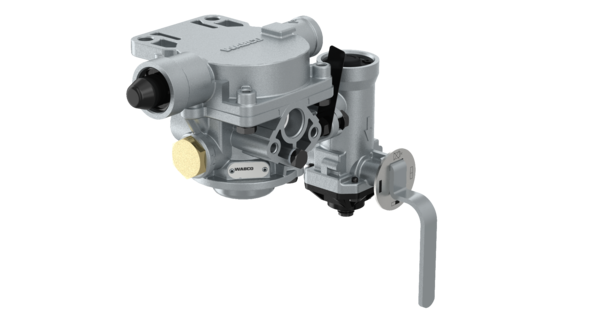

موزع مقطورة بالسكينة وابكو

موزع مقطورة بالسكينة وابكو

Material Number: 9710025700
Size : (mm x mm x mm) 266 x 126 x 172
Weight : (kg) 2.15
GTIN : 7895851046689

Material Number: 9710025700 Size : (mm x mm x mm) 266 x 126 x 172 Weight : (kg) 2.15 GTIN : 7895851046689

0.00 £E 0.0 EGP 0.00 £E

1.00 £E

هذه التركيبة غير موجودة.

Technical specifications

Brand : WABCO Original
Part type : Premium original quality
Technical Specification : OE specification
Product Category : Device
Adjustable Predominance : Adjustable: 0 to 1 bar
Comments : Combination of 971 002 150 0 and manual LSV 475 604 011 0
Distance between holes : 71.0 mm
Max. operating pressure : 10.0 bar
Mounting : 2x Ø 11.0 mm
Port thread 1 : M22 x 1.5
Port thread 12 : M22 x 1.5
Port thread 2 : M22 x 1.5
Port thread 3 : Flap Exhaust
Port thread 4 : M22 x 1.5
Range of adjustment : 1 bar
Temperature range : -40°C to +80°C
Type : With brake valve and Apportioning valve
Calculated Volume (dm³) : 5.7648
Size (mm x mm x mm) : 266 x 126 x 172
UPC : 193133449881
Weight (kg) : 2.15
Weight (lb) : 4.7399

Replaces

GOLDHOFER : 200211
JOHN DEERE : AZ50946
KEMPF : 2101019
KENWORTH : S971-002-570-0
KRONE : 945079
KRONE : 945148
KRONE : 500945148
LANGENDORF: 1133362
MERITOR : S9710025700
NEOPLAN : 07101000
PETERBILT : S971-002-570-0
Ppt : 5213120010
Ritec : 49800029300
SCANIA : 2090074
SCHMITZ CARGOBULL : 050022
SCHMITZ CARGOBULL : 054676
SCHMITZ CARGOBULL : 54676
