BPW

Firma No : ASM-013.014
Oem : 03.353.68.01.0
Group : Axle
Brand : BPW

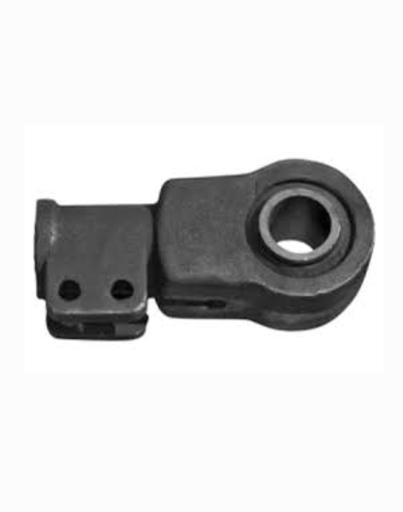

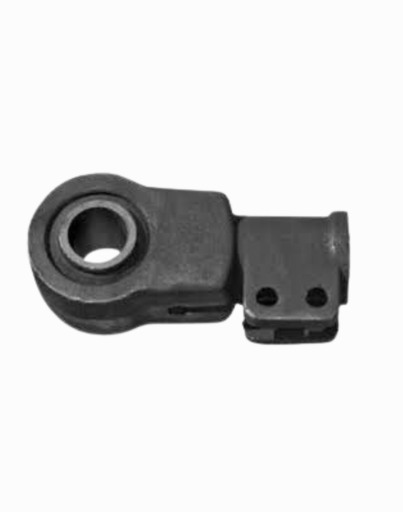

Tie rod end

Tie rod end
03.353.68.02.0 - Tie rod end
Specifications
Shipping Details
Weight 2.76 Kg
Customs Code 870894
Country of Origin Germany

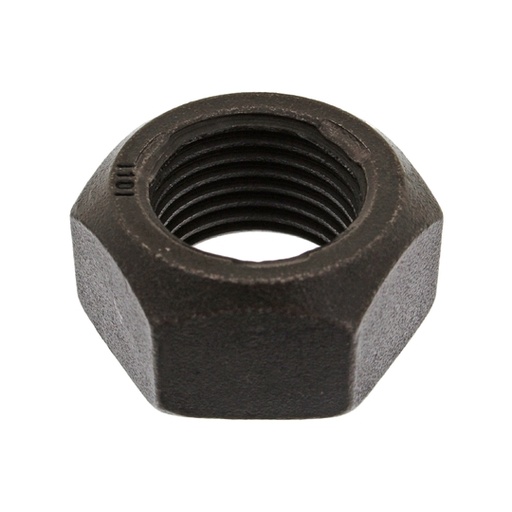

Nut
01279 - Nut
Dimensions and size
Thickness 17 mm
Specifications
Internal Thread Size M22 x 2
Quality/ Grade 10
Spanner Size 32
Bolt Head-/Nut Design Male Hex
DIN/ISO 936
Material Steel
Surface Phosphatized
Weight 0.062 kg

Trailer turn-table


Weight 79.6 Kg
Customs Code 870899

Diameter [mm] : 105
Height [mm : 56
Spanner Size : 85
Thread Size : 60 x 2
for OE number : 03.262.17.11.0

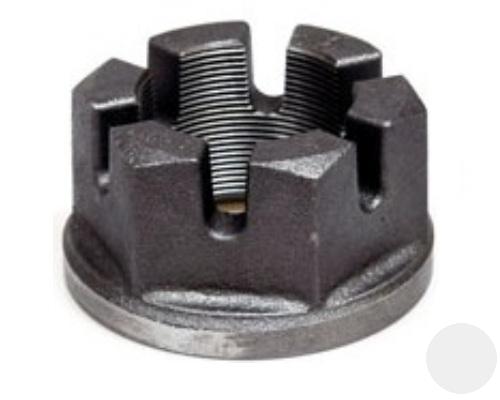

Nut, stub axle

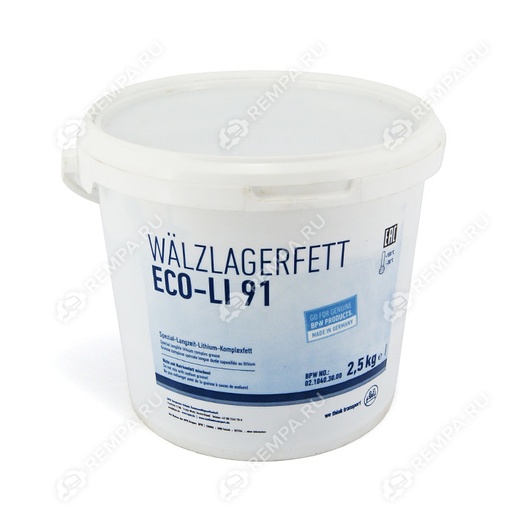

BEARING GREASE

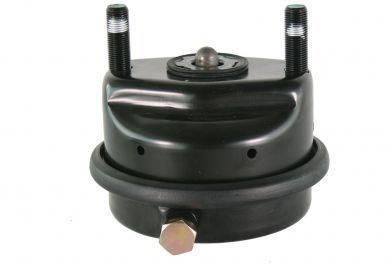

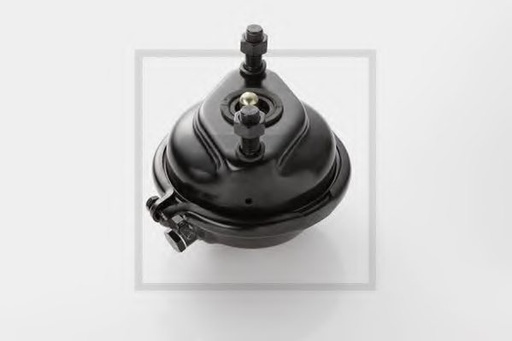

Diaphragm Brake Cylinder

Diaphragm Brake Cylinder
046.441-00A - Diaphragm Brake Cylinder
Specifications
Parameter Type 16
Piston Rod Length 15 mm
Pressure Hose Connector Thread Size M16x1,5
Brake Type Disc Brake
Stroke 60 mm
Weight 2.85 kg

Diaphragm Brake Cylinder

Length : [mm]265
EAN : 05.397.58.03.0 - ZG.50979-0008

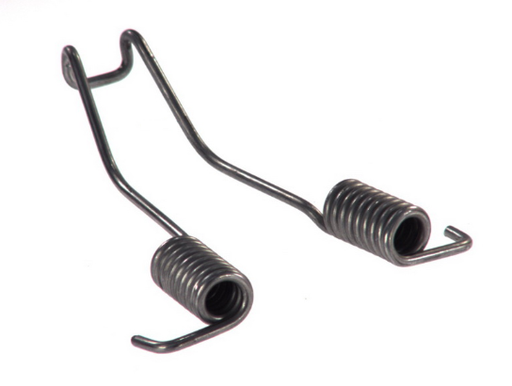

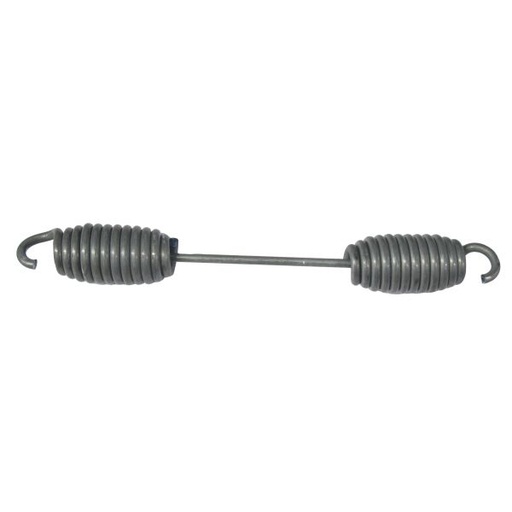

Spring, brake shoe

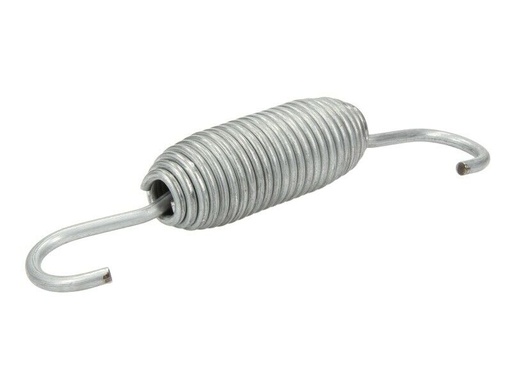

Spring, adjuster
Spring, adjuster

Length : [mm]125
EAN :03.397.33.06.0 - 03.397.33.12.0

Spring, brake shoe

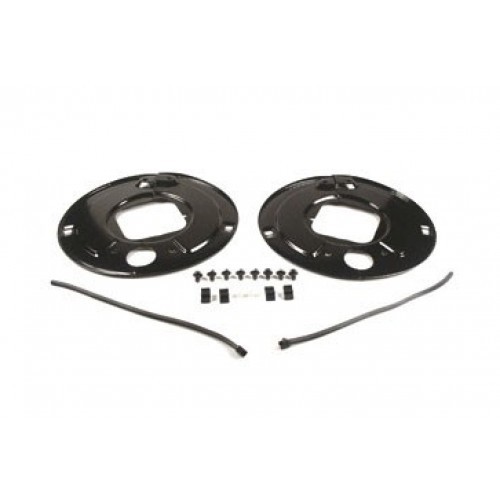

Cover Sheet, brake drum
046.413-00A - Cover Sheet, brake drum
Dimensions and size
Height 63 mm
Outer Diameter 447 mm
Specifications
Axle Version H 8.000
Axle Version H 9.000
Axle Beam Rectangular Hollow Axle
for Square Axle Beam Width 150 mm
Weight 2.3 kg

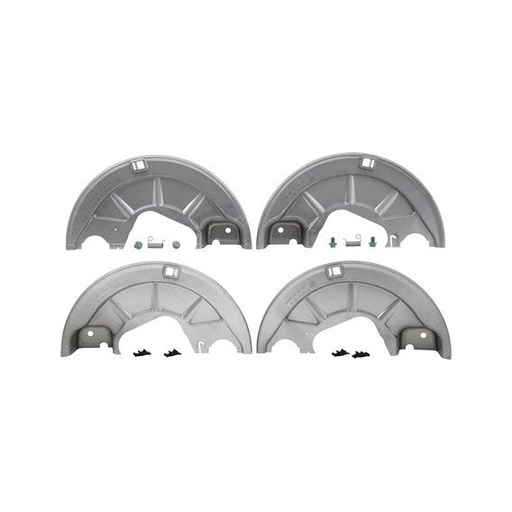

Brake disk cover

Cover Plate, dust-cover wheel bearing
52200 - Cover Plate, dust-cover wheel bearing
Specifications
Shipping Details
Weight 2.24 Kg

Wheel hub

Wheel hub

Wheel hub

Height : [mm]9.5
Inner diameter : [mm]33
Thickness : [mm]2
EAN : 03.188.02.02.0

Ring, wheel hub

Diameter : [mm]D10
DIN / ISO : DIN 94
Length : [mm]71
EAN : 02.620.20.30.1

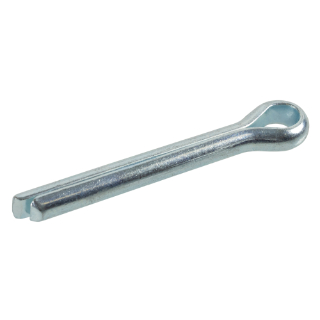

Split Pin
14881 - Split Pin
Dimensions and size
Length 71 mm
Outer Diameter 10 mm
Specifications
DIN/ISO 94
Surface Zinc-coated
Weight 0.008 kg

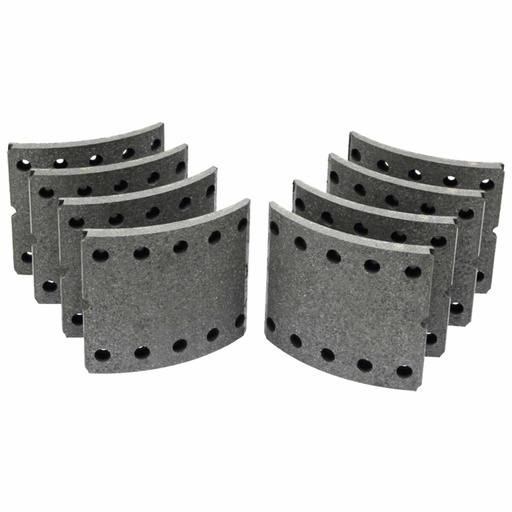

Thickness : [mm]18
Width : [mm]200
EAN : 09.801.07.45.0

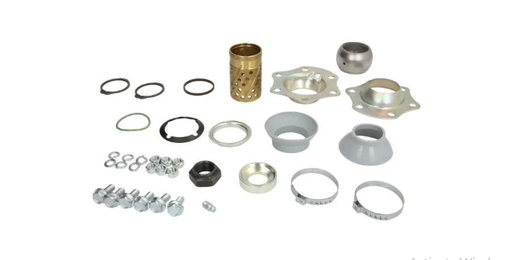

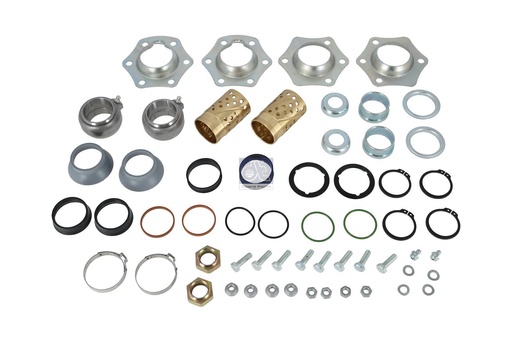

Repair Kit, brake camshaft

GTIN : 4047755878795 - 4047755267940
OE NO. : 1 602 394 - 737796

Repair Kit, brake camshaft

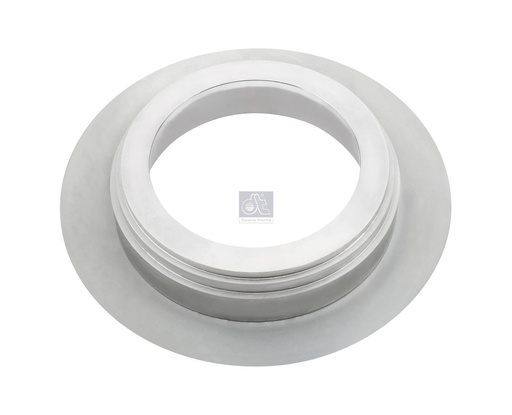

Height [mm] : 34
Inner diameter [mm] : 97
Outer diameter [mm] : 187
EAN : 05.370.07.20.0

Pressure Ring

Fitting Position : Rear Axle
Inner diameter : [mm]d144
Outer diameter : [mm]D205
Thickness : [mm]S3.5
EAN : 03.310.99.02.0 - 03.310.99.15.0


Seal, wheel hub
04139 - Seal, wheel hub
Dimensions and size
Inner Diameter 144 mm
Outer Diameter 205 mm
Thickness 3.5 mm

Fitting Position : Front Axle
Inner diameter : [ mm]d149
Outer diameter : [mm]D212
Thickness : [mm]S3.5
EAN : 03.310.99.01.0 - 03.310.99.16.0

Seal, wheel hub

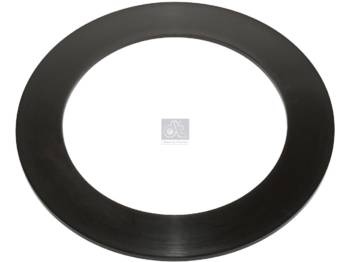

Fitting Position : Rear Axle
Inner diameter : [mm]d130
Outer diameter : [mm]D186
Thickness : [mm]S4
BPW : 03.310.38.21.0

Seal, wheel hub
